AWS HostID integration
This article goes over the AWS HostID integration available for Vectra NDR deployments that see traffic from AWS VPCs.
This AWS HostID integration is also covered in the AWS Brain and AWS vSensor deployment guides.
AWS HostID Integration Introduction
The HostID integration for AWS VPCs enables adding relevant context (Host ID, OS, instance ID, tags, etc) about Amazon EC2 hosts when observed by Vectra.
Detections in Vectra are tied to a Host or Account entity.
To be more easily actionable and for some algorithms to support learning, Vectra detections must be attributable to a Host (including statically defined hosts), rather than a generic Host IP address or other similar network artifact – especially as many of these network artifacts are transient in the cloud.
To this end, the Vectra Brain can directly query the describe instance APIs in AWS to extract the instance identifier, tags, Amazon VPC and other metadata for Amazon EC2 VMs.
While technically optional, it is a best practice is to enable this integration when you have Hosts deployed in AWS that are monitored by Vectra.
This may be because you have vSensors deployed in AWS, or if you have connectivity to AWS that allows any of your other Vectra Sensors to observe communications with hosts deployed in AWS.
The integration will provide additional artifacts that help with HostID's automated naming of hosts in your environment.
For more details on HostID, please see Understanding Vectra Detect Host Naming.
The AWS account used for this integration may be set up as a standalone account or as a federated organization with a parent account and multiple child accounts.
Supporting Materials
Vectra makes CloudFormation templates available to enable easy creation of the users, roles and policies required.
HostIdTemplate.yml- Used for integration with the AWS Resource Manager to collect artifacts that provide details to Vectra's automated HostID capability.
HostIdFederatedParentTemplate.yml - Used for HostID in Federated AWS setups
HostIdFederatedChildTemplate.yml - Used for HostID in Federated AWS setups
The files can also be downloaded from your Brain after deployment from the following locations:
https://<brain_hostname_or_IP>/resources/HostIdTemplate.yaml/serve_file
https://<brain_hostname_or_IP>/resources/HostIdFederatedParentTemplate.yaml/serve_file
https://<brain_hostname_or_IP>/resources/HostIdFederatedChildTemplate.yaml/serve_file
Configuration
The AWS account may be set up as a standalone account or as a federated organization with a parent account and multiple child accounts.
Standalone Accounts
If the deployment involves just a single AWS account, use CloudFormation to create the VectraCognitoHostIDv1 IAM user using the HostIdTemplate.yml. The template is also shown in an expandable code block below. Users can also be created manually if desired using the template as guide for the permissions required.
You may add as many credential sets as required if you have multiple AWS accounts that you wish to treat as standalone accounts. Once you have created the IAM user you must create a new Access key in AWS for the user. AWS has some documentation available here.
Navigate to the user
VectraCognitoHostIDv1in the Identity and Access Management service.Click on the Security credentials tab and the Create Access key button.

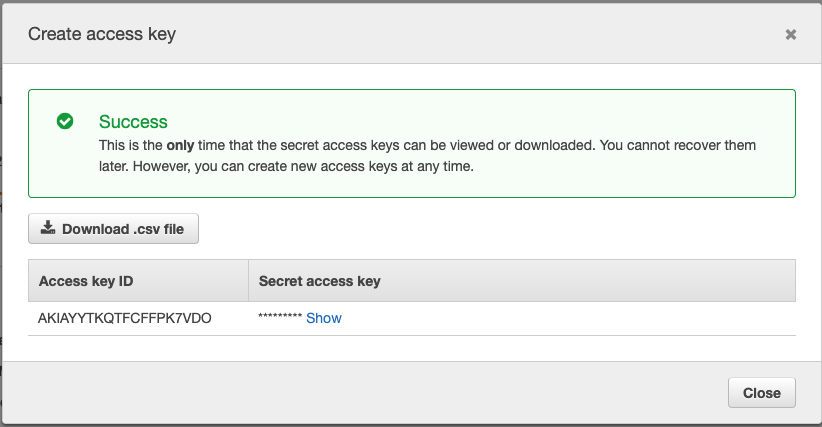

This will generate a credential pair similar to the below screenshot.
Please take note of these credentials for later use in the Vectra UI.
In the Vectra UI, navigate to Configuration > SETUP > External Connectors > AWS and click Edit.
Turn On the Enable integration with AWS.

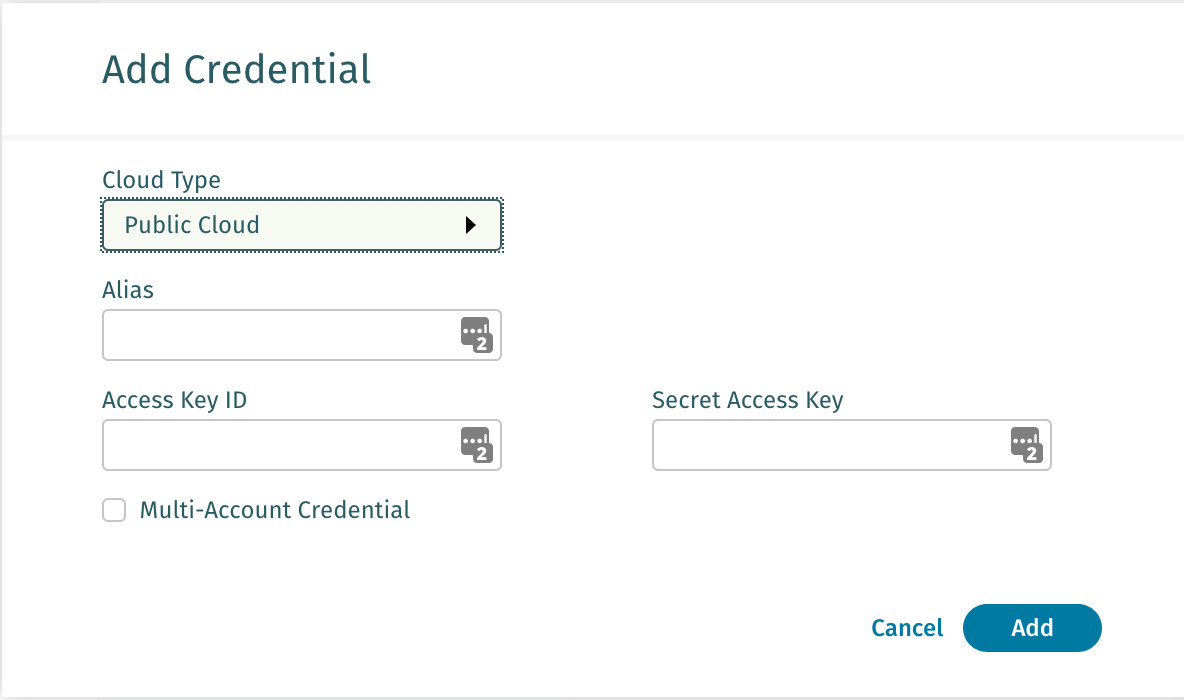

Click Add Credential and fill out the form using the values you just noted and the appropriate Cloud Type.
The Alias can be any identifier you wish to use for this set of credentials in Vectra’s UI.
Enter access key ID and secret access key corresponding to the
VectraCognitoHostIDv1IAM user.
Click Add.
Click Save on the Enable integration with AWS Resource Manager configuration area.
Look for the green check mark and a status of Connected.
Federated AWS Organizations with Parent and Child Accounts
For these types of organizations, Vectra supports role assumption at the child account level using an IAM user that is created at the parent account level.
Use CloudFormation to create the
VectraCognitoHostIDFederatedIAM user in the parent account using theHostIdFederatedParentTemplate.ymlfile.The user can also be created manually if desired using the template as guide for the permissions required.
The template is also shown in an expandable code block below.
Navigate to the user
VectraCognitoHostIDFederatedin the Identity and Access Management service.Click on the Security credentials tab and the Create Access key button.
This will generate a credential pair similar to the below screenshot.
Please take note of these credentials for later use in the Vectra UI.
Use CloudFormation to create the
VectraCognitoHostIDrole in each child account where Vectra vSensors will be deployed.Use the
HostIdFederatedChildTemplate.ymlattached at the bottom of this page.The user can also be created manually if desired using the template as guide for the permissions required.
The template is also shown in an expandable code block below.
In the Vectra UI, navigate to Configuration > Setup > External Connectors > AWS and click Edit.
Turn On the Enable integration with AWS setting.
Click Add Credential and fill out the form using the values you just noted and the appropriate Cloud Type.
Enter the access key ID and secret access key corresponding to the
VectraCognitoHostIDFederateduser you created earlier in the parent account.The Alias can be any identifier you wish to use for this set of credentials in Vectra’s UI.

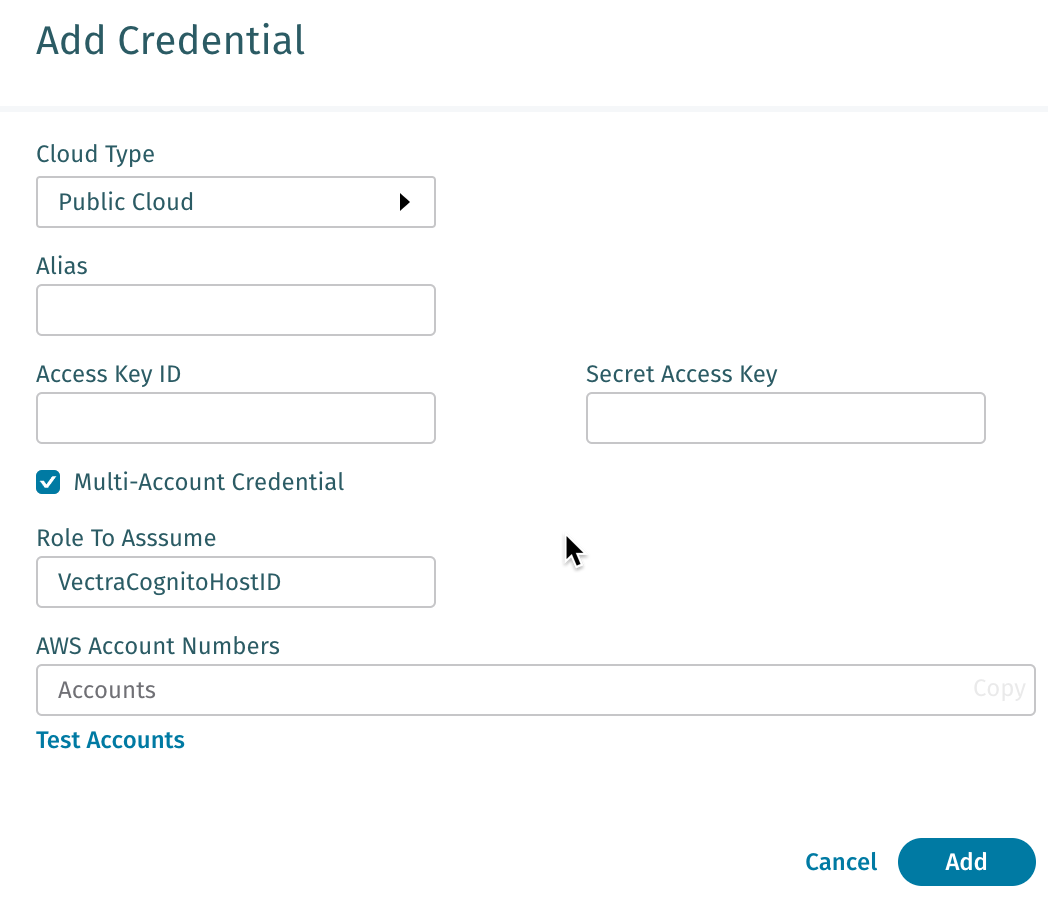

Click the Multi-Account Credential checkbox to enable multi-account credential entry.
Role to Assume should default to VectraCognitoHostID and can be left as is unless any of the templates have been modified.
List all the AWS Account Numbers (account IDs) to be covered.
You can hit enter after each account or paste in multiple account numbers separated by a comma.
You may test access using the Test Account link.
Click Add.
Save your connector configuration
Look for the green check mark and a status of Connected.
Viewing and Modifying Virtual Networks Considered by the Connector
The connector will only look at virtual machines that belong to some VPCs, not necessarily all VPCs that the credentials have access to. Specifically, by default, the connector will only look for virtual machines with network interfaces in the VPCs where a Vectra AWS Sensor traffic interface is deployed into, and all the VPCs peered to it. If a virtual machine has multiple network interfaces, the connector will provide host identification only for the IP addresses belonging to interfaces on monitored VPCs.
Vectra limits the scope of the connector to only virtual networks that can reach an AWS Sensor for the following reasons:
Vectra wants to avoid an excessive number of connections to the AWS resource manager.
To improve performance, Vectra wants to avoid storing unnecessary information in the platform for resources that we are not monitoring.
In the cloud it is possible that you may have some isolated virtual networks that are not monitored by Vectra Sensors but have overlapping IP space with some other networks that are monitored. Duplicate IPs are not supported by Vectra. To avoid Host ID issues, we only consider virtual machines on the networks that appear reachable by our Sensors.
If you want to add or remove some virtual networks from the set of virtual networks that Vectra monitors, you can do so through the CLI (ssh to the Brain as the vectra user). This functionality is not available in the Vectra UI. The use case for adding or removing virtual networks could be any of the following:
If you have some tunneling or forwarding enabled and Vectra AWS Sensors see traffic from VPCs that are NOT directly connected to our Sensor:
You will want to add the networks to the monitored networks list to extend Host ID coverage to the tunneled/forwarded traffic’s associated Hosts.
If you do NOT have any AWS Sensors deployed, but mirror AWS traffic into your data center where you have Vectra physical or virtual Sensor coverage:
You will want to add the networks to the monitored networks list to extend Host ID coverage to the mirrored traffic.
If you do have some overlapping IP space on a network that appears reachable by our Sensor, but it is not monitored by our Sensor:
You will want to remove the overlapping networks from the monitored networks to avoid any Host ID issues.
If you have a lot of peered VPCs but only some are monitored by the Sensor:
You will want to remove the non-monitored networks from the monitored networks list to increase performance and reduce load on the AWS resource manager.
The command to include or exclude specific virtual networks from the Vectra CLI is set aws hostid config. Without turning on the aws hostid config at the CLI, the connector will operate in a default manner. Think of this command as customization beyond the default behavior described above, not a full replacement for it. You must turn on the aws hostid config at the CLI to enable any include/exclude customizations that you configure.
The command has a help message illustrating its use:
The command show aws hostid config will show if customization is enabled for the default HostID configuration, and any included or excluded VPCs that you want to be considered or not considered by the connector.
Example of usage:
