vSensor deployment in Hyper-V

Deploy a Hyper-V vSensor, verify prerequisites, and manage its initial embryo state before pairing and updating.

Requirements

• IP address and subnet mask for the Management interface of the vSensor.
• DNS server addresses.
• Access to PowerShell as an administrator on the Hyper-V server you plan to deploy the vSensor on.
• To configure your vSensor, you will need access to the vSensor CLI either via the console in your hypervisor or via SSH.

  • DHCP is enabled by default upon vSensor initial boot.
  • You must know the IP that was assigned via DHCP to SSH to the CLI, otherwise you will need to use the hypervisor console.

Downloading the latest vSensor Hyper-V VHDX image

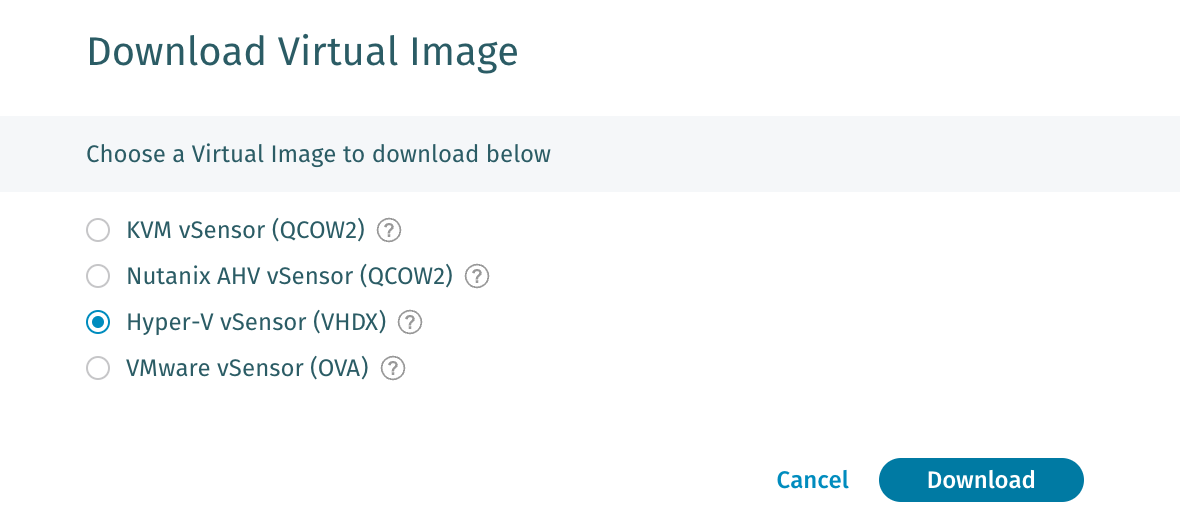

The current vSensor image (VHDX) for use on new vSensors can be downloaded from the Brain by clicking the blue Download Virtual Image link at the top right from the Data Sources > Network > Sensors page in your UI and then selecting the Hyper-V vSensor (VHDX) image.

Deploying the VHDX

• Once downloaded, the VHDX image will need to be unzipped. Use the archive utility of your choice to unzip the image.
• Launch PowerShell as an administrator.

• As a ONE-TIME-SETUP STEP:

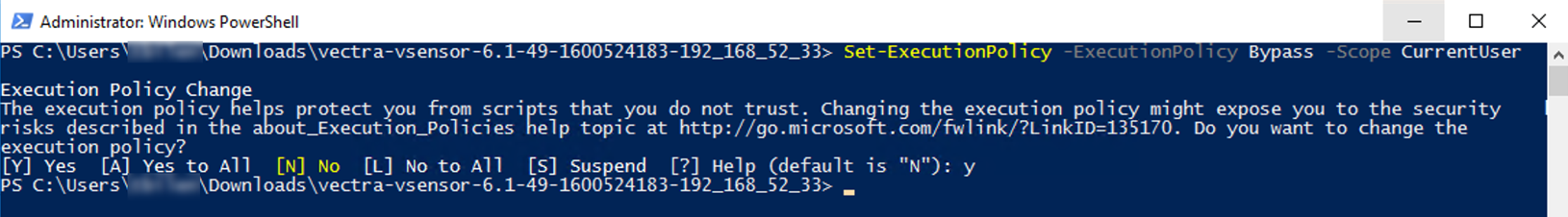

  • Run Set-ExecutionPolicy -ExecutionPolicy Bypass -Scope CurrentUser to allow running of the installer.

• Change directory to where you unzipped the VHDX image.
• You can use the PowerShell get-help command to see current options for the installation script

  • get-help '.\Vectra vSensor.ps1'
  • For example, you may want to use a specific name for this vSensor using the -Name argument.

Please Note:

• You can specify arguments for the script and automate the deployment or do the deployment interactively and the script will prompt you for required information.

Some of the more common arguments for the CLI command are shown below:

-Name
        The name of the new VM.

-Path
        The storage path for the VM.

-ManagementSwitch
        The network switch through which the sensor will pair with the brain.

-CaptureSwitches
        The network switches through which the sensor will ingest traffic. A comma separated list (Length must match number of capture interfaces)

-CaptureInterfaces
        The number of capture interfaces to set up using the interfaces given in CaptureSwitches

-SetupMirror
        Setup port mirroring on the external capture vSwitch.

-Configuration
        The selected sensor configuration.

        Type: String
        Options: “2core", "4core", “8core”, “16core”

• To specify the storage path for the VM you must use the -path option, or your installation will occur in the current directory.

  • If you install in the current directory, to install another vSensor you will need to unzip a new copy of the vSensor code to deploy as the .vhdx file will be in use by the first vSensor you deployed.
  • It is a best practice to specify a path for installation if you will be installing multiple vSensors.
• Remote hosts are also supported, for guidance in specifying remote paths, refer to the get-help option.
• The -setupmirror option will attempt to setup port mirroring on any capture switch. It does this by setting MonitorMode 2 on the capture switch as the source and should be used if you want to capture the traffic between the virtual switch and the external NIC (capturing physical traffic for assets outside of Hyper-V).

  • This will cause all traffic passing on the external network NIC of the capture switch to be mirrored to any VM whose port monitoring mode has been set to Destination.
  • If you already have this set, there is no need to set it again.
  • Hyper-V switches that don’t support MonitorMode 2 (such as Internal Hyper-V switches) cannot be set to MonitorMode 2 but will not error out or cause issues.
  • See Capturing Physical Network Traffic Observed on the Hyper-V Server for more detail.
• Execute the PowerShell script to begin the installation.

  • & '.\Vectra vSensor.ps1' (and optionally use -setupmirror as a switch if desired)
  • You will need to specify the management switch, capture switch, and configuration.
  • The script will then create the vSensor and start it up.

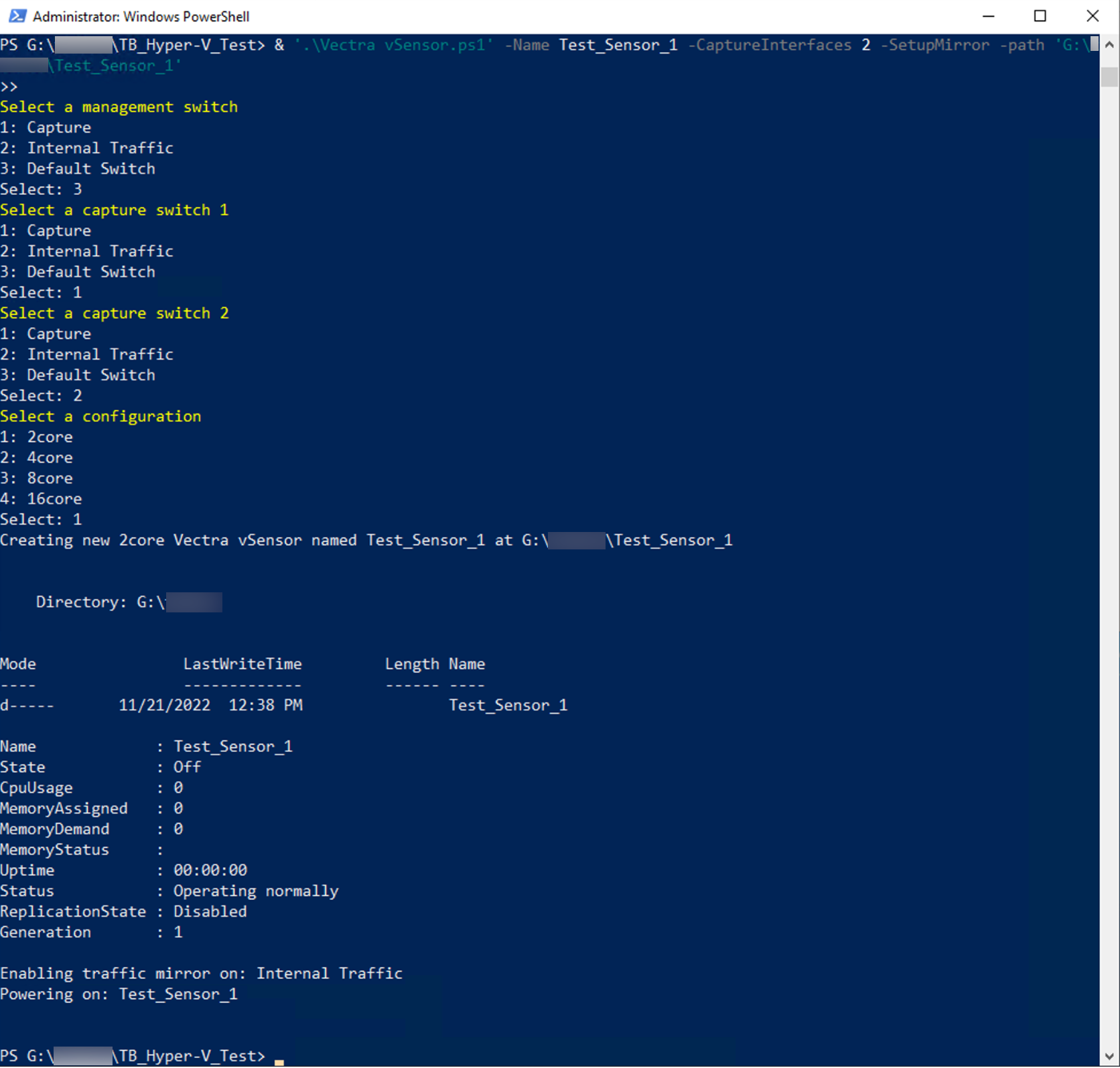

This below example is interactively deploying a new vSensor. The arguments have supplied:

• A name of Test_Sensor_1
• A path of G:\redacted\Test_Sensor_1
• We’ve asked the script to configure 2 capture interfaces on the vSensor but will specify the Hyper-V switches we can to map to interactively.

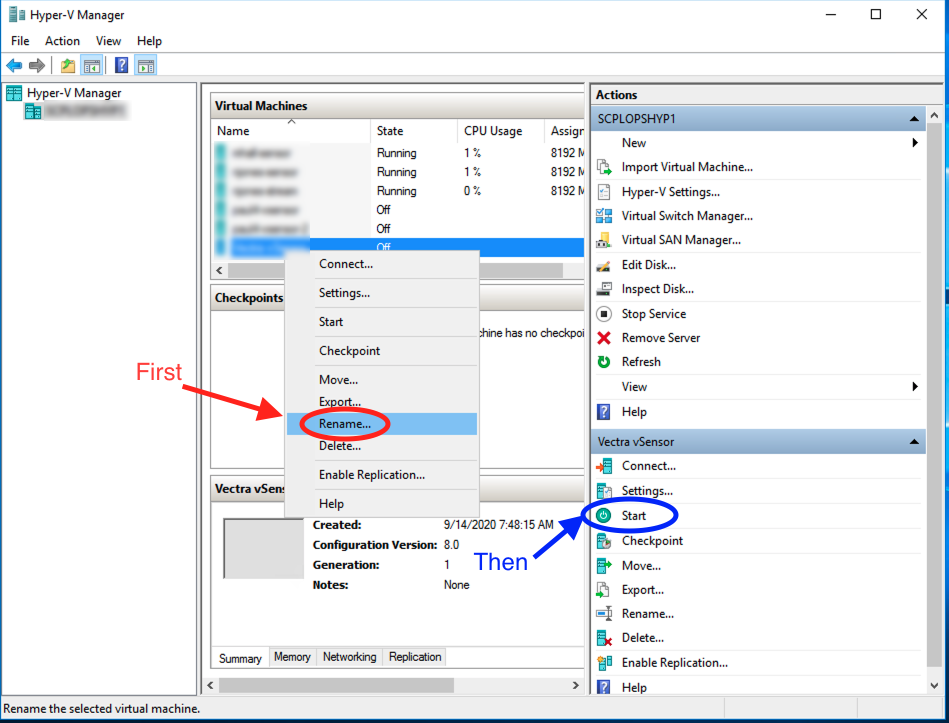

• Once the script has finished you can rename your VM in the Hyper-V manager if desired.
• The vSensor will start automatically after the deployment script runs.
• Renaming can be done while the vSensor is running.
• If you shut down the vSensor, the Start button location is shown below.

Immediately after the initial deployment of a vSensor, it is in what is known as an embryo state before pairing and updating from the Brain. The vSensor needs to be paired to a Brain, then receive a software update from the Brain, and finally update to become fully functional. During the time before pairing and updating, not all vSensor commands are functional yet.

To login to a vSensor, the username is vectra and the initial password is changethispassword. After the vSensor is paired and updated, the initial login to the updated vSensor will force a password change.

For example, the show traffic stats command does not exist on vSensors that are in embryo state. To determine if your vSensor is still in embryo state, you can use the show version command.

• If the version string is empty, then the vSensor is still in embryo state.
• After a vSensor has been paired, upgrading will become True after the vSensor has successfully downloaded an update image from the Brain and has begun updating.

Please see the example below for what a vSensor will output when in embryo state:

vscli > show version
Upgrading: False
Version:

While in embryo state, it is recommended to only use commands related to pairing such as the following:

set brain

• Ordinarily, this command is not necessary as the vSensor image that was downloaded from your Brain is already set to pair with the Brain by hostname or by IP address, depending on how Configuration → COVERAGE → Data Sources → Network → Sensors → Sensor Configuration → Sensor Pairing and Registration settings are configured.
• For DNS Name to be an option, a hostname must be configured for your Brain in Configuration → COVERAGE → Data Sources > Network > Brain Setup > Brain. If no hostname is configured, then Management IP Address will be the only option available.

  • It is recommended to configure a hostname and use it for pairing when possible. Doing so typically makes failover situations easier to manage when IPs of Brains may change in failover scenarios.
• As an example, in the below screenshot, the IP address of the Brain would be embedded into the vSensor image that was downloaded from the Brain so that it already knows where to attempt to pair when it is booted.

set registration-token

• Typically, this is also not required for embryo vSensors as the downloaded vSensor is already configured to be able to pair with the Brain it was downloaded from.
• If you need to pair with a different Brain, the set registration-token command will enable the vSensor to pair with a Brain that did not provide the initial vSensor image download.
• Sensor registration tokens are created on a Brain and are good for 24 hours after creation. If you need to generate one, navigate to Configuration → COVERAGE → Data Sources → Network → Sensors → Sensor Configuration → Sensor Pairing and Registration.
